Polymer Products
High performance spherical polymer particle "Toraypearl™PA6"
Description
Toraypearl ™PA6 is a spherical PA6 powder with optimum fluidity and polymer properties for Powder Bed Fusion (PBF method) by Toray original polymerization technology for spherical particle. Toraypearyl is composed of PA6,
well-known polymers as high strength, rigidity, and chemical resistance and used in a wide range applicatiotns.
Toraypearl™ has a spherical shape and can achieve excellent fluidity and high filling during lamination, which enables 3D printing with smooth surface and precise shape. That’s why it can contribute to total cost reduction by simplifying post-processing. In addition, by taking advantage of the high fluidity of Toraypearl™, a high amount of glass fiber (GF) reinforced grade is lined up and possible to provide high rigidity and high HDTs printed parts.
Benefits at a Glance
-
- □Spherical shape
- □High Strength; High rigidity; High heat resistance
- □Possible to fill with Glass Fiber
- □High HDTs
- □High-quality parts with smooth surface can reduce
post-process, polishing and coating, and save the cost.
Material properties
- GF30％ reinforced PA6
- ◇Flexural modulus：5200MPa
- ◇Flexural strength：108MPa
- ◇Tensile strength：64MPa
- ◇Surface roughness(Ra)：10μm
- ◇HDT(0.45MPa)：217℃
Case Studies and Application Examples:
- □Intake manifold, head cover, oil separator oil strainer etc. for automotive
- □Hand tool, FA casing, Office chair etc.

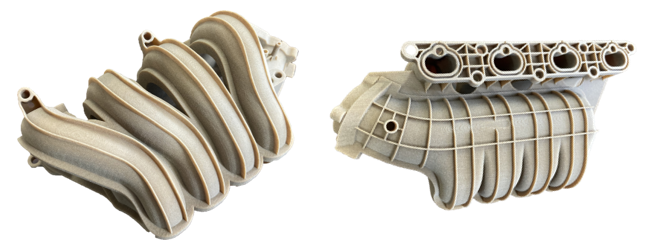

| Intake manifold（cross section） |
|---|
 |
Download for White paper
High performance spherical polymer particle
"Toraypearl™PA6"and its applications
