High performance polymer particle "Toraymill™PPS"

Description

Toraymill™PPS is a PPS resin powder with optimum fluidity and polymer properties for Powder Bed Fusion (PBF method) using our unique polymer design technology.
PPS is a super engineering plastic with high strength, rigidity, heat resistance, chemical resistance, low water absorption, electrical characteristics and flame retardance etc. In addition, possible to mix fillers by taking advantage of its high fluidity, and we have glass fiber (GF) reinforced grades and carbon fiber (CF) reinforced grades, which is one of the highest strength 3D printing materials.

Benefits at a Glance

    • □High Strength; High rigidity
    • □High heat resistance, chemical resistance
    • □Low water absorption
    • □Electronics property
    • □Flame retardance(UL94 V-0 equivalent)

Material properties

Unfilled PPS GF25% reinforced PPS CF20% reinforced PPS
Flexural modulus 3300MPa 5235MPa 3990MPa
Flexural strength 63MPa 91MPa 92MPa
Tensile strength 49MPa 66MPa 71MPa
HDT（1.8MPa） 123℃ 237℃ 247℃

Case Studies and Application Examples:

  1. □Automotive : Motor insulator, bus-bar, connector, Reactor bobbin, transformer coil
    （Prototype for Performance evaluation）
  2. □Electrical/Electronic : Transport tray for electronic components（End-use parts）, Sensor cover
    （Prototype for Performance evaluation）
  3. □Robot : Robot cover, Mechanical parts（End-use parts）
  4. □Water application : Water pumps, valves, fittings, piping, etc. Water pump impeller
    （Prototype for Performance evaluation）
  5. □Industrial equipment / analytical equipment : ducts, nozzles, throttle bodies（Prototype for Performance evaluation）

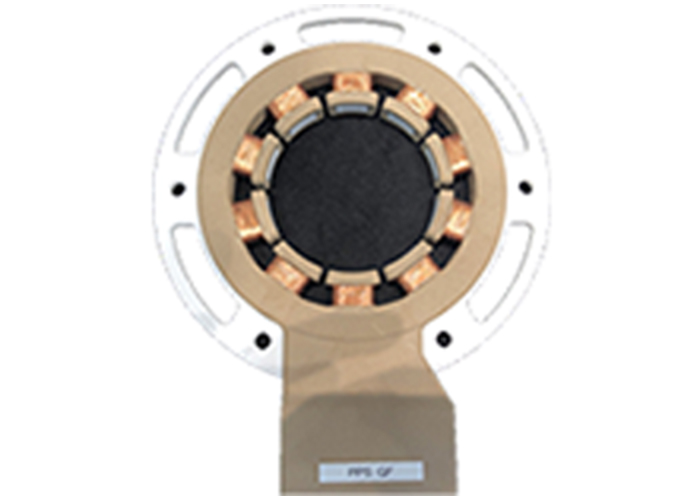

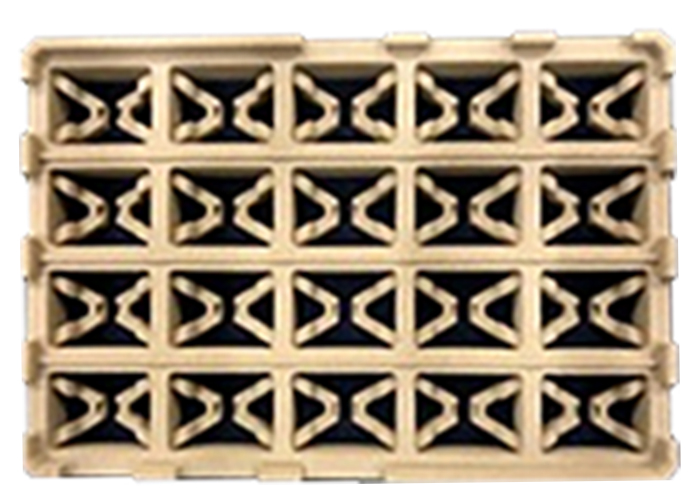

Bas bar etc. motor application Transport tray for electronics part Impeller

Download for White paper

  • 3D Printer Compatible - CF-Reinforced PPS Powder "Toraymill™PPS" and its application

    For more information

Learn more about PPS 3Dprinting

AM-Rauch GmbH in Germany

Learn more about 3D printer for PPS

Aspect Inc. in Japan
